3D Scanner

3D scanning is the process of analyzing a real-world object or environment
to collect data on its shape and possibly its appearance (e.g. colour).
The collected data can then be used to construct digital 3D models.

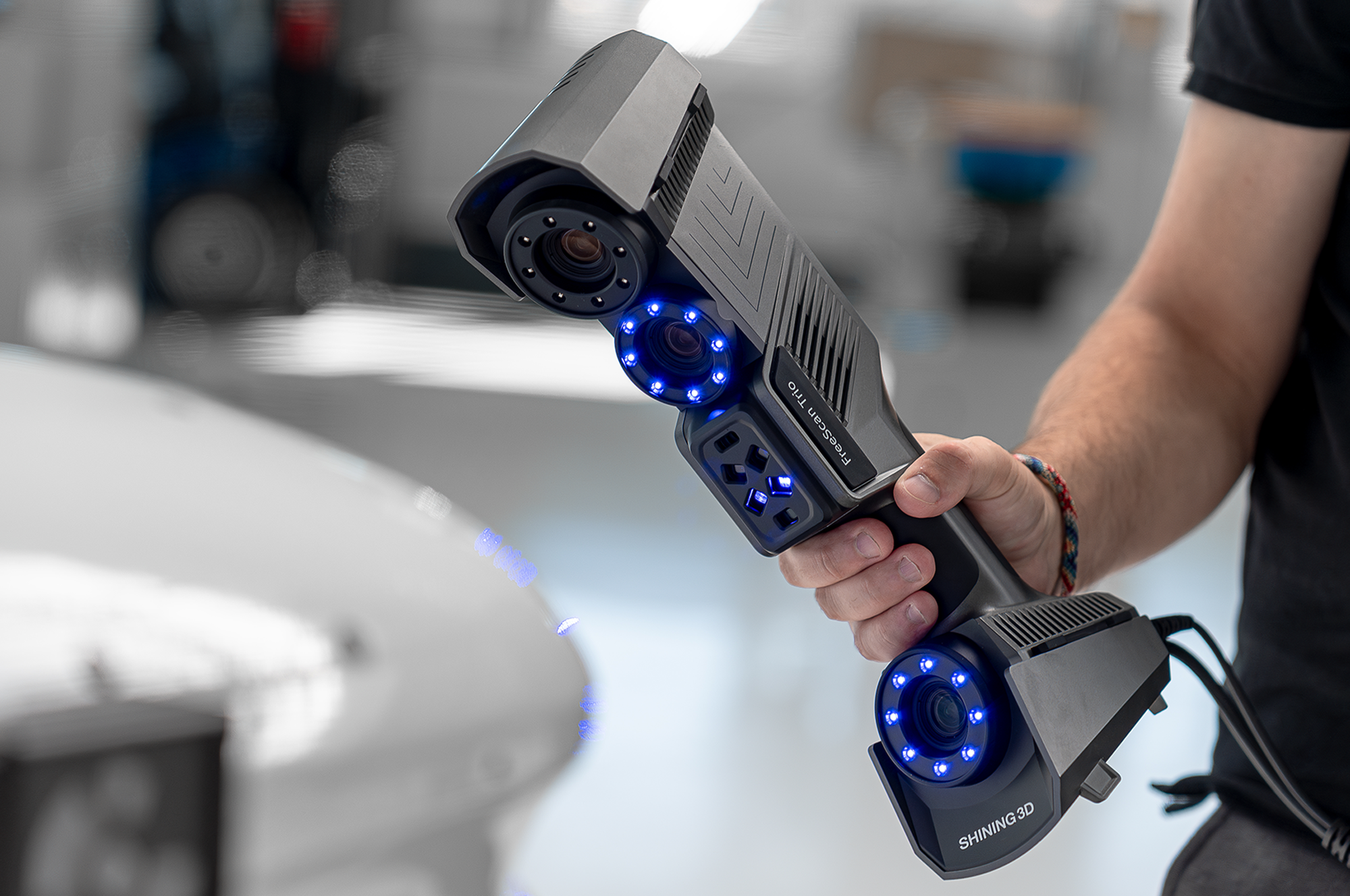

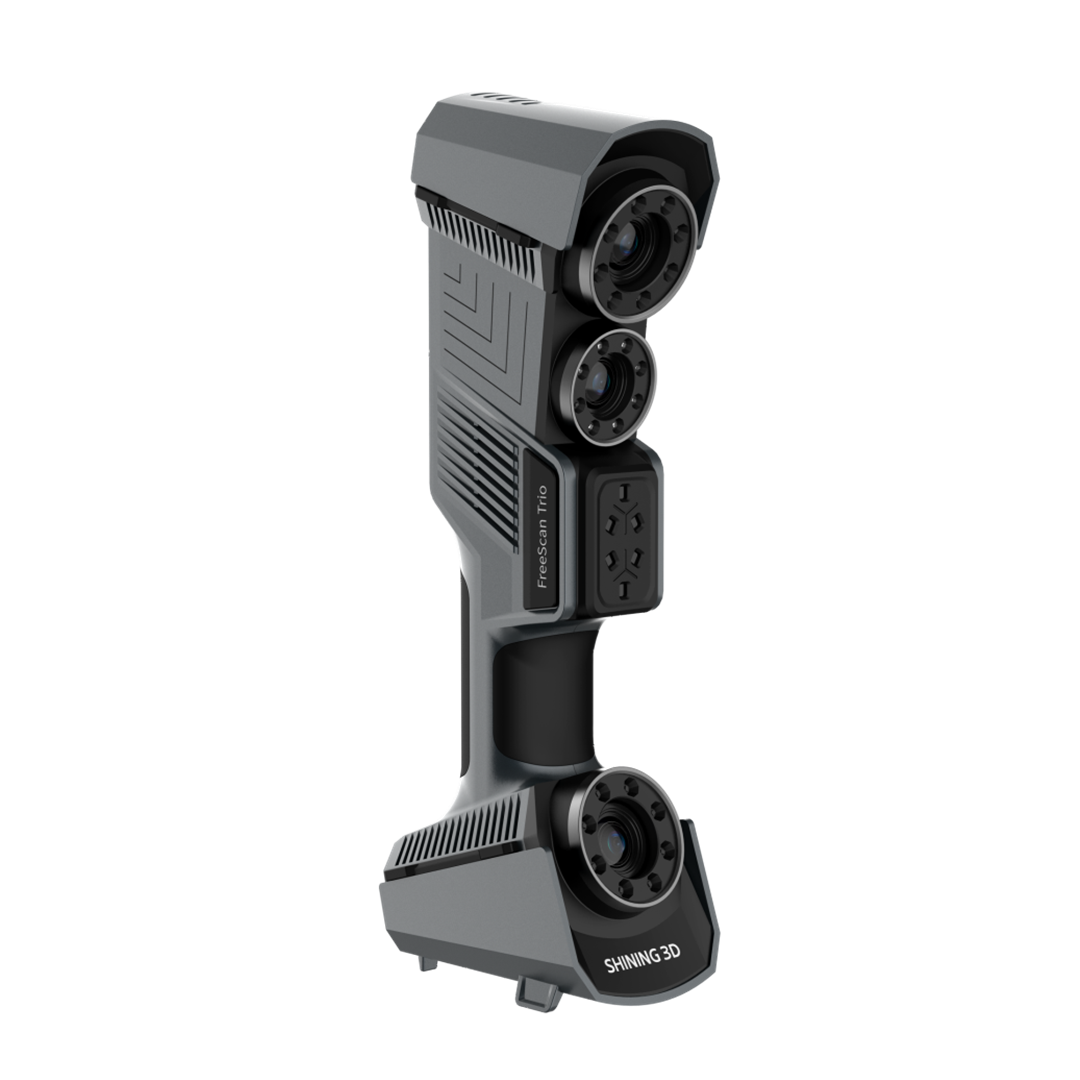

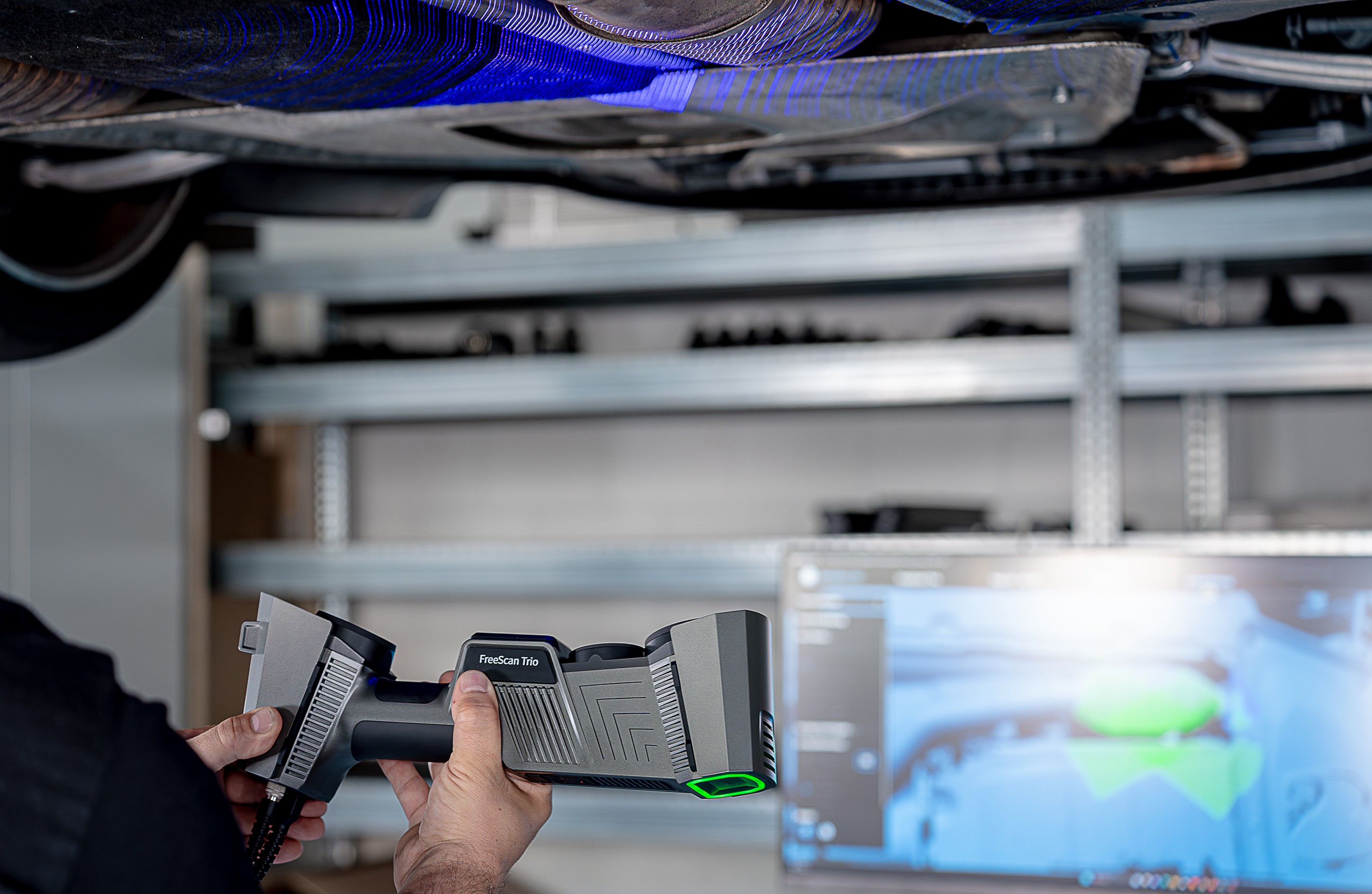

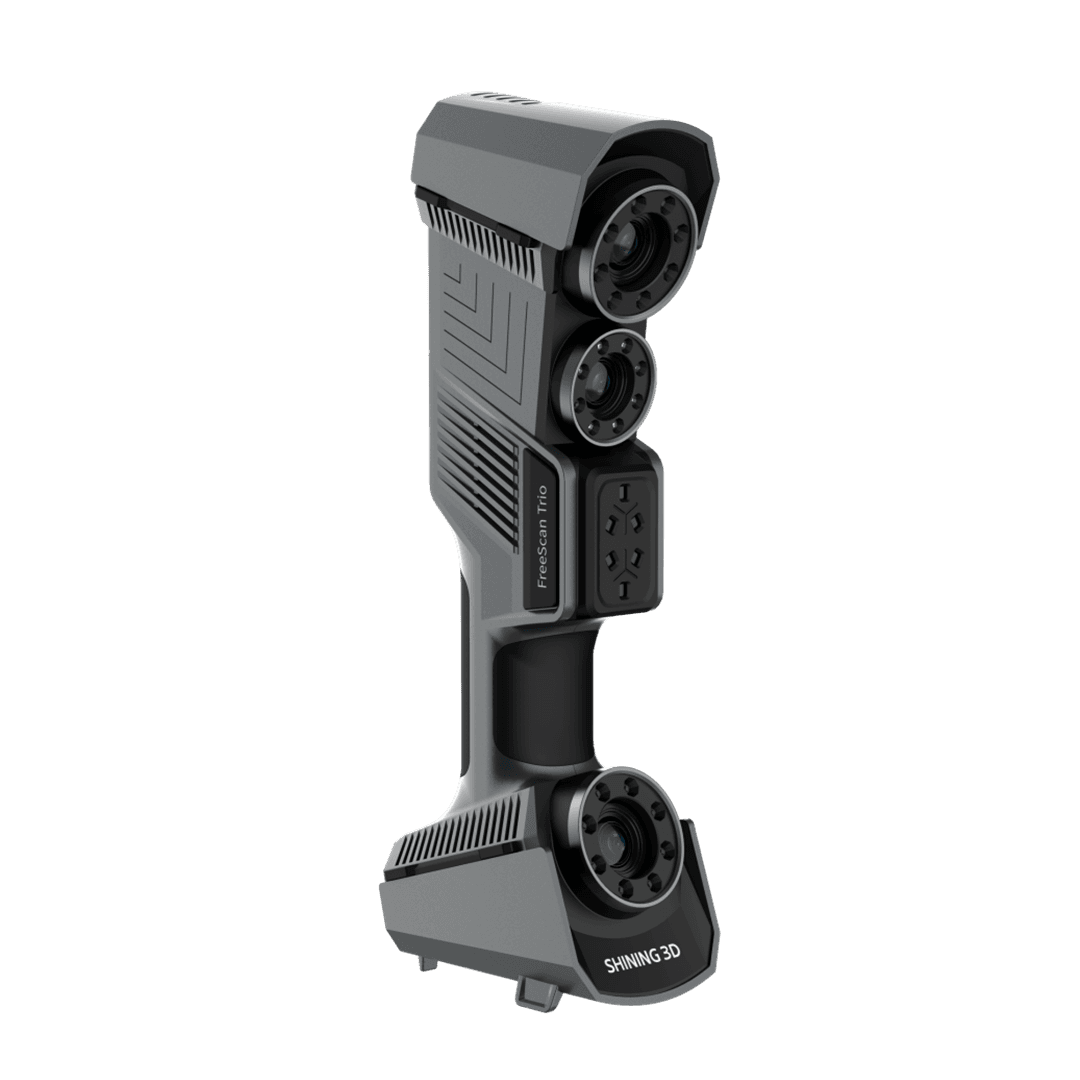

Newly Introduced FreeScan Trio: Triple Camera, 98 Laser Lines, Ultra-Fast Scan Rates

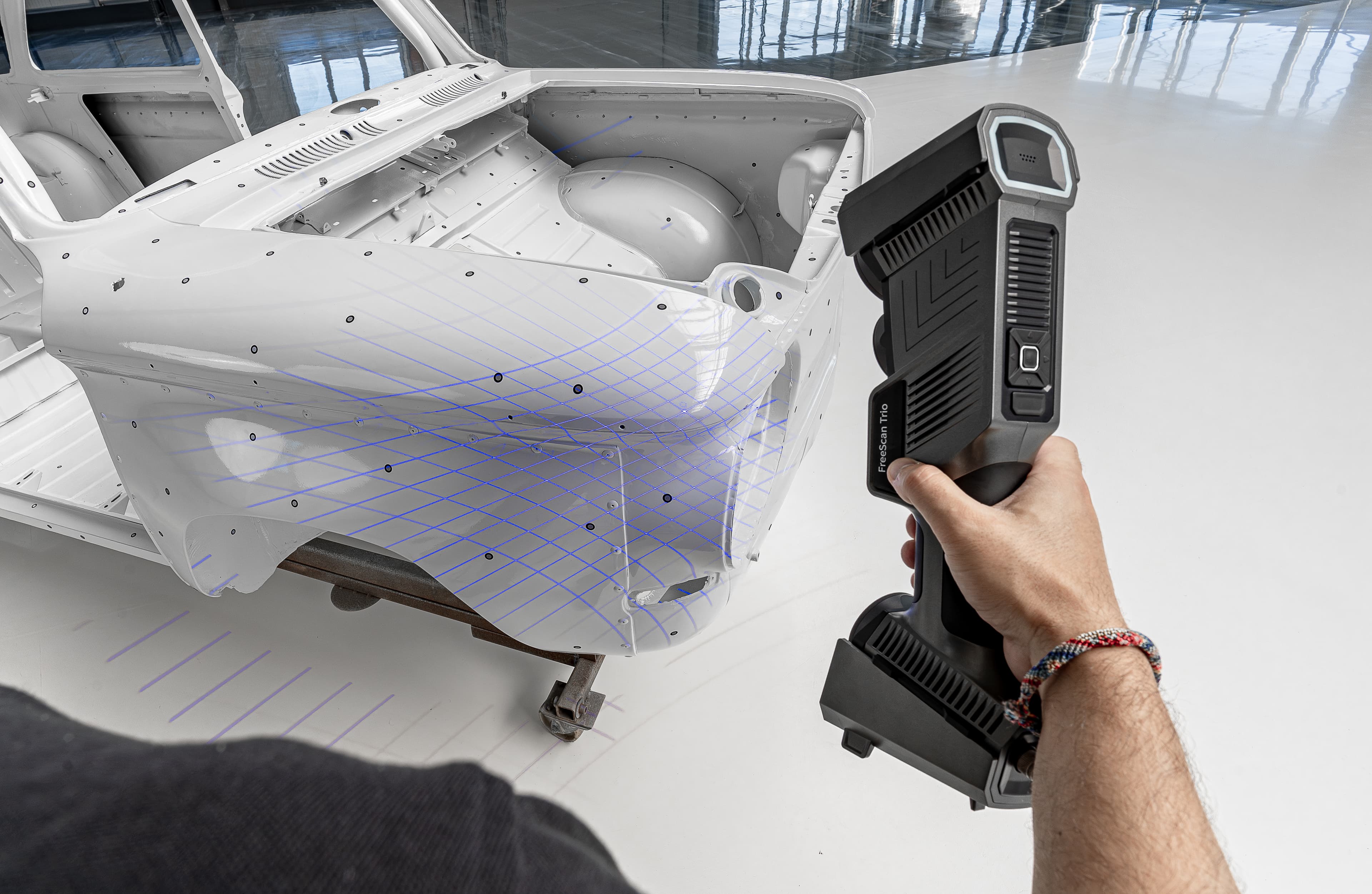

FreeScan Trio, the latest addition to its high-end range of 3D scanning solutions. The FreeScan Trio presents a notable development in laser 3D scanning technology, offering marker-free scanning capabilities facilitated by a 98-laser-line mode and a triple, 5MP camera system.
Not only but especially for projects involving large objects, scanning without the need for markers significantly reduces preparation time.

Moreover, the scanner is able to capture an impressive 3,010,000 points per second, establishing it as the fastest handheld 3D scanner in its class.
Complemented by a large field of view of 650 by 580mm, it captures more data in fewer sweeps.

In addition to the 98-laser-line mode, the FreeScan Trio offers a single-line mode, one with 7 parallel lines, and one with 26 crossed lines.
These modes can tackle many different projects in all kinds of industries, conferring the scanner with the versatility that is now customary in all SHINING 3D products. With markers, these modes all achieve an accuracy of up to 0.02mm, and a volumetric accuracy of up to 0.02 mm.

98-Line-Laser Mode

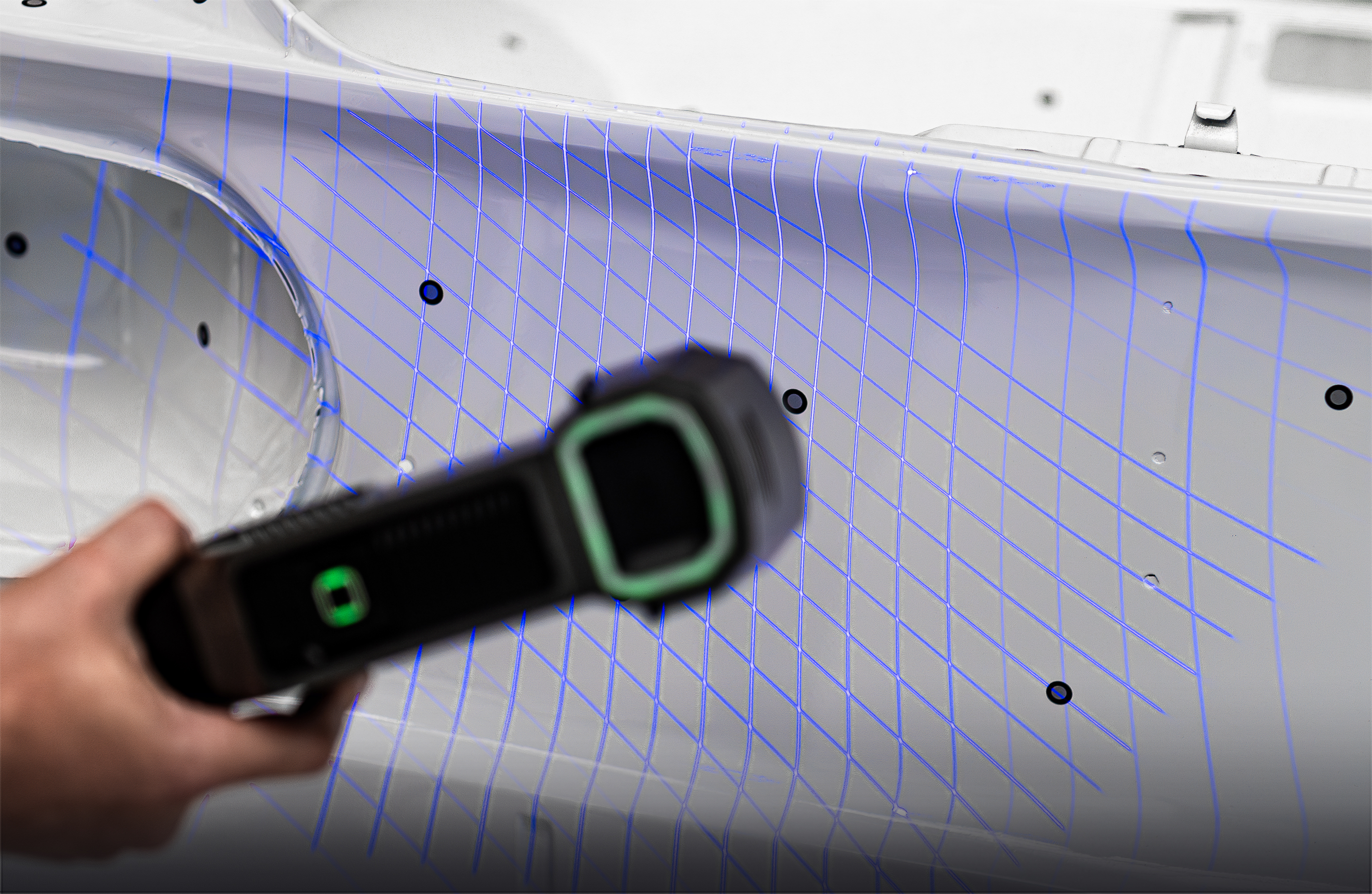

26-Line-Laser Mode

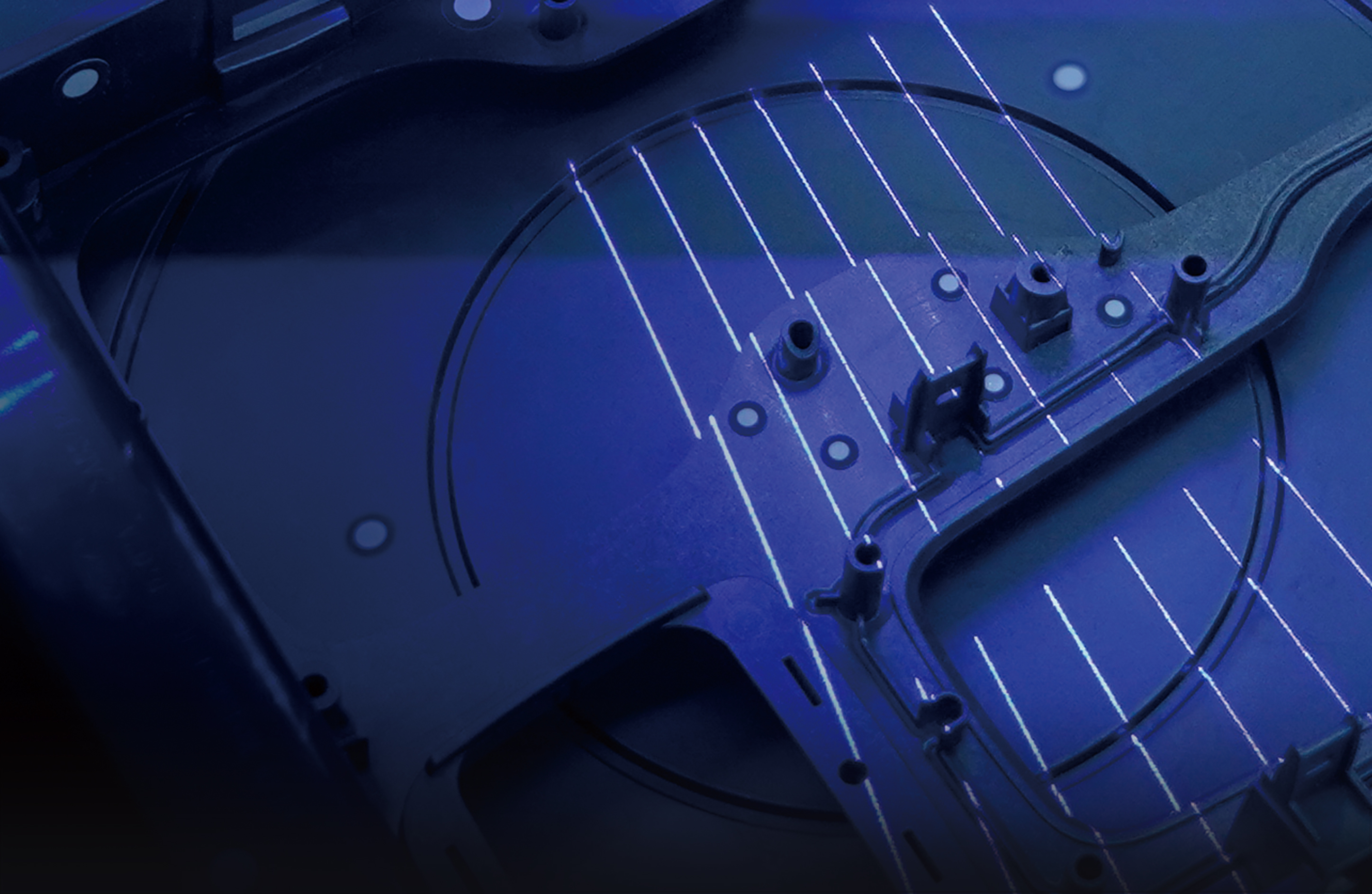

7-Line-Laser Mode

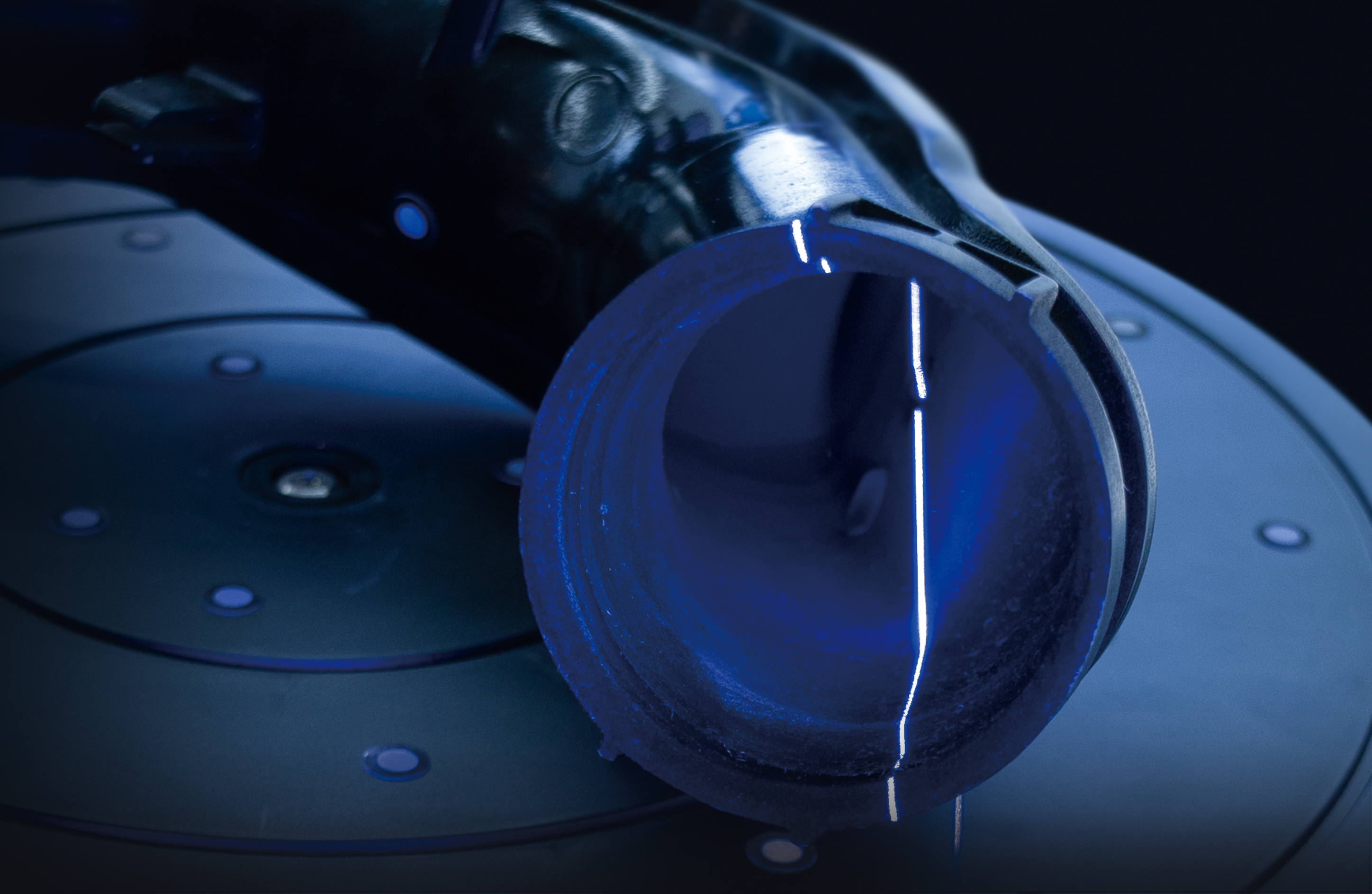

Single-Line-Laser Mode

Last but not least, the FreeScan Trio is also equipped with a photogrammetry mode that works with SHINING 3D’s practical, magnetic scale bar, eliminating the need for extra coded targets. This mode narrows the volumetric accuracy down to 0.02mm + 0.015mm/m.

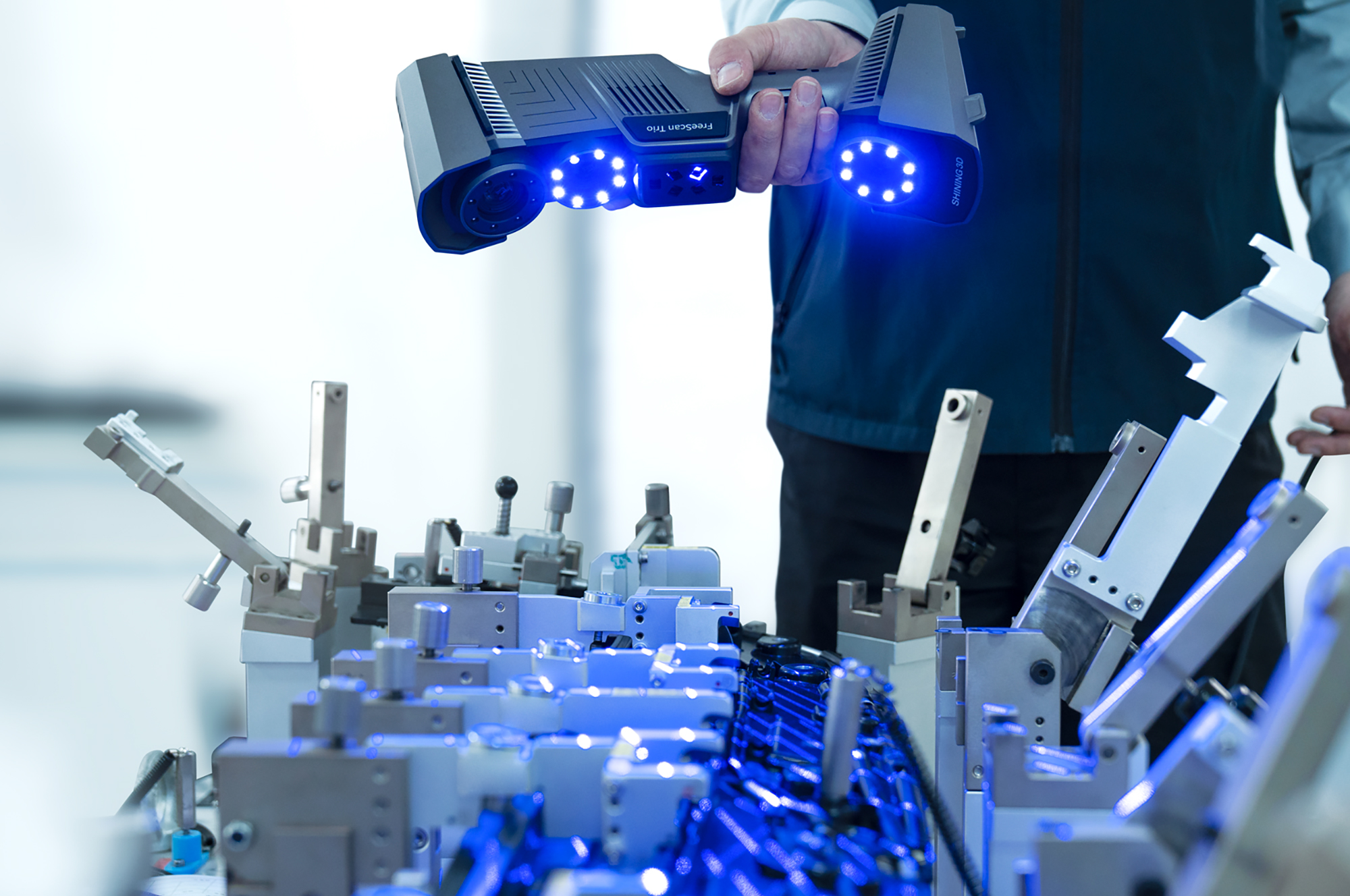

Whether working with large-scale assemblies or scrutinizing intricate components, the new FreeScan Trio is a reliable and powerful ally for any engineer or designer.
